How to Measure for a Reveal Fit Blind
By Betta Blinds and Awnings - 5th May 2022
Note
This applies to our Roller Blinds only. Other Internal Blinds have extra steps that must be taken to avoid mismeasuring.
This applies to our Roller Blinds only. Other Internal Blinds have extra steps that must be taken to avoid mismeasuring.
Inspect the Location

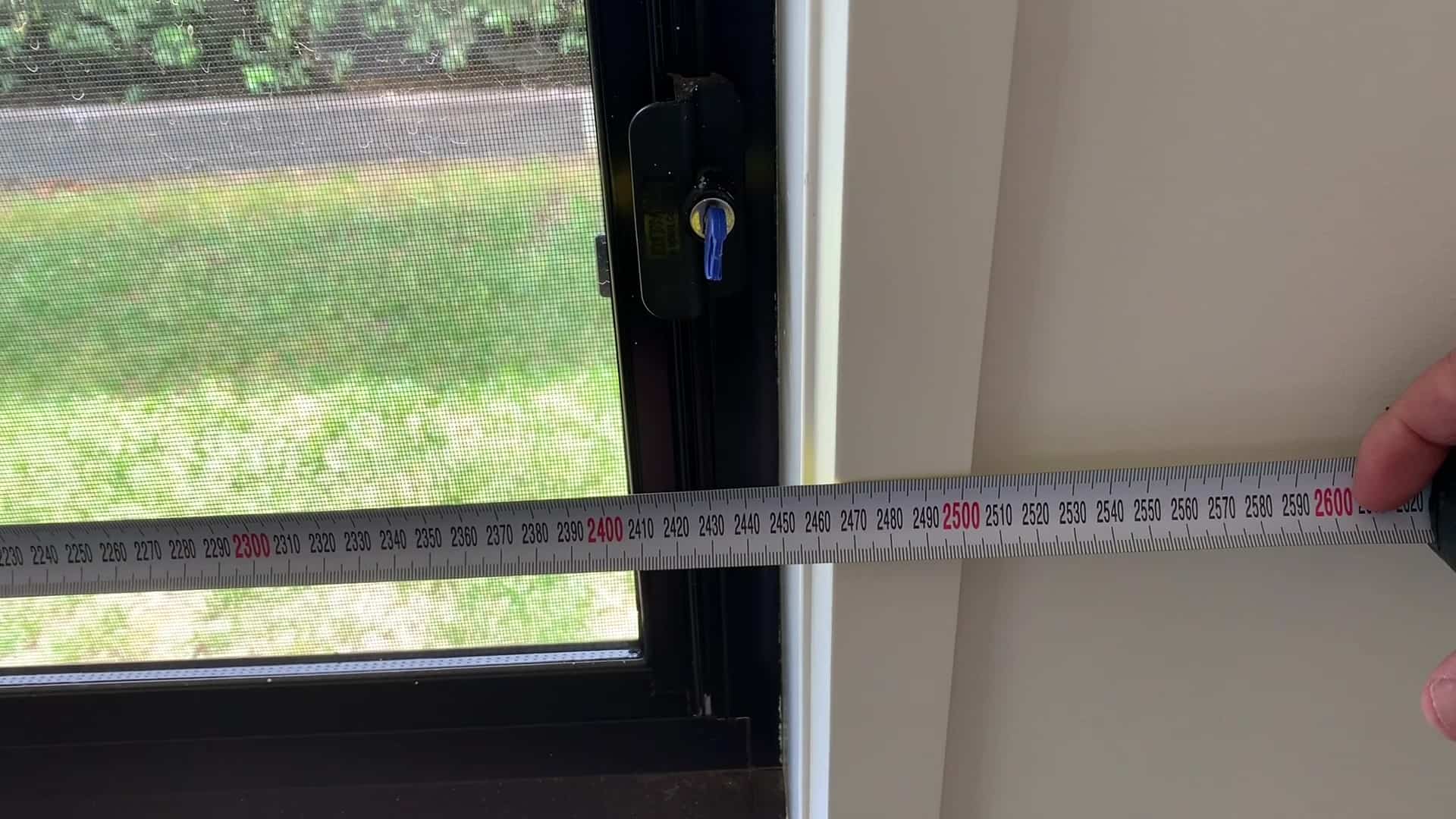

1. Inspect the window and mounting points for anything that could prevent the Blind from being installed or operated. In our example, there is a bar that could prevent you from fitting some types of Blinds.

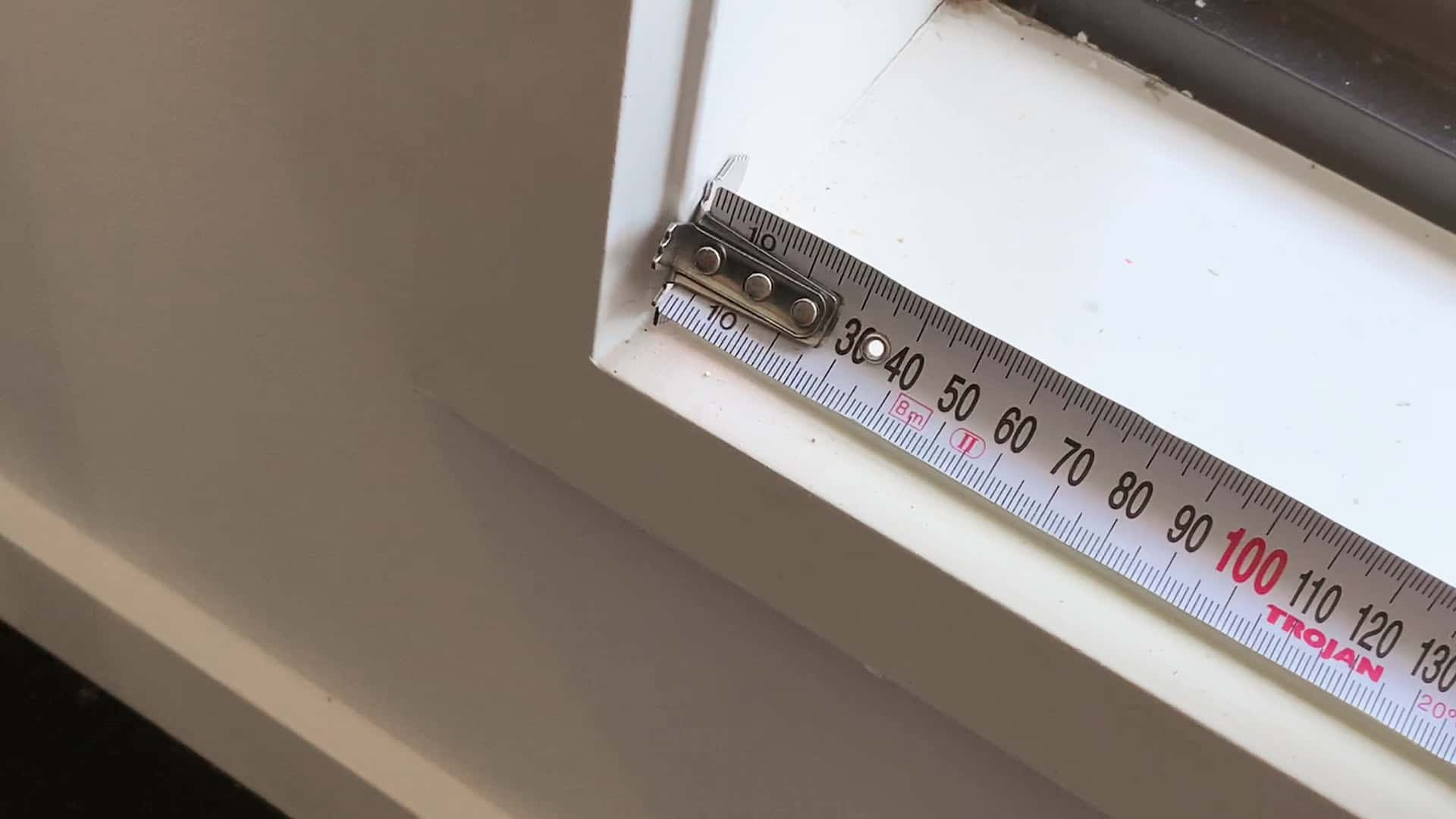

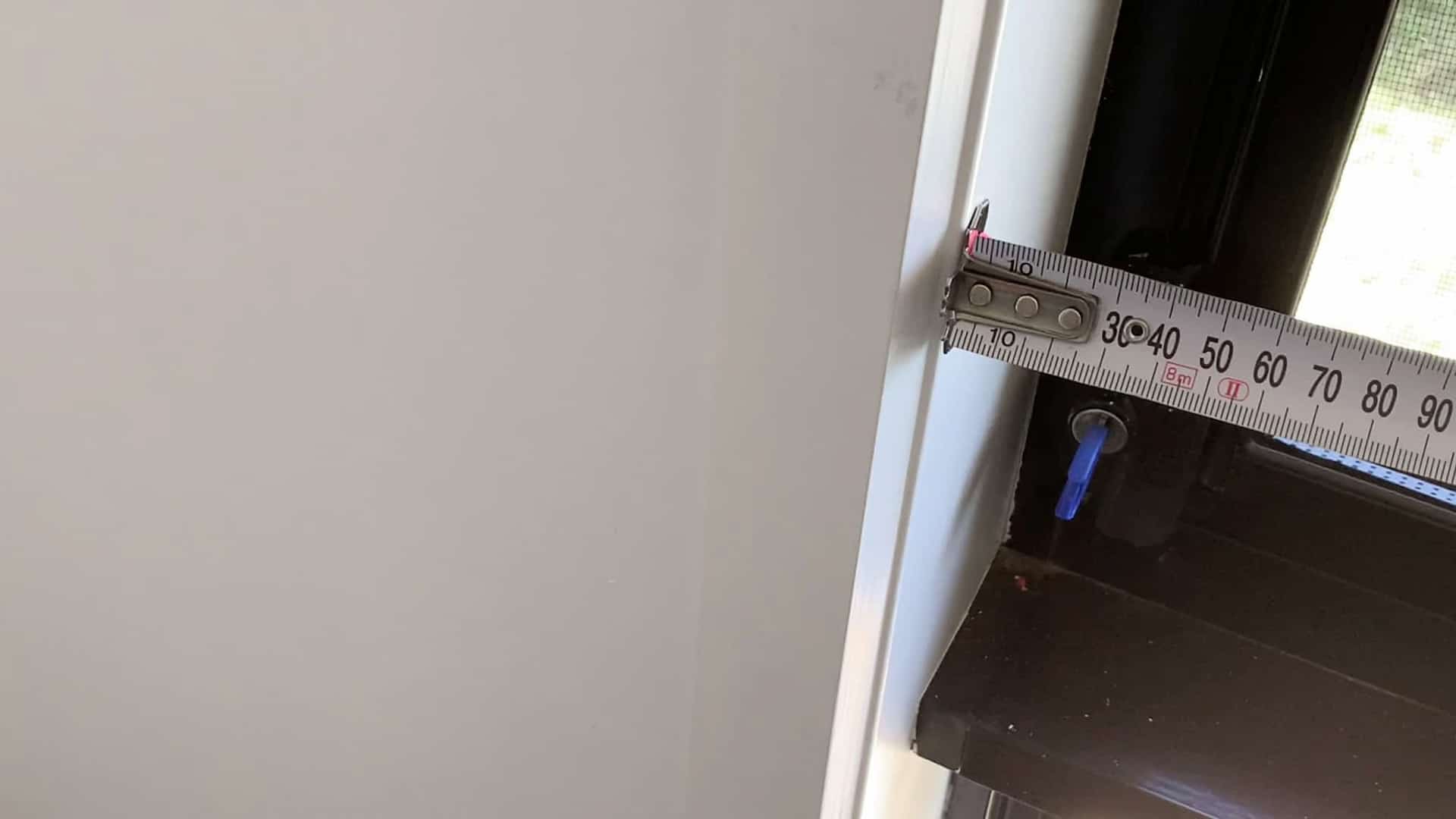

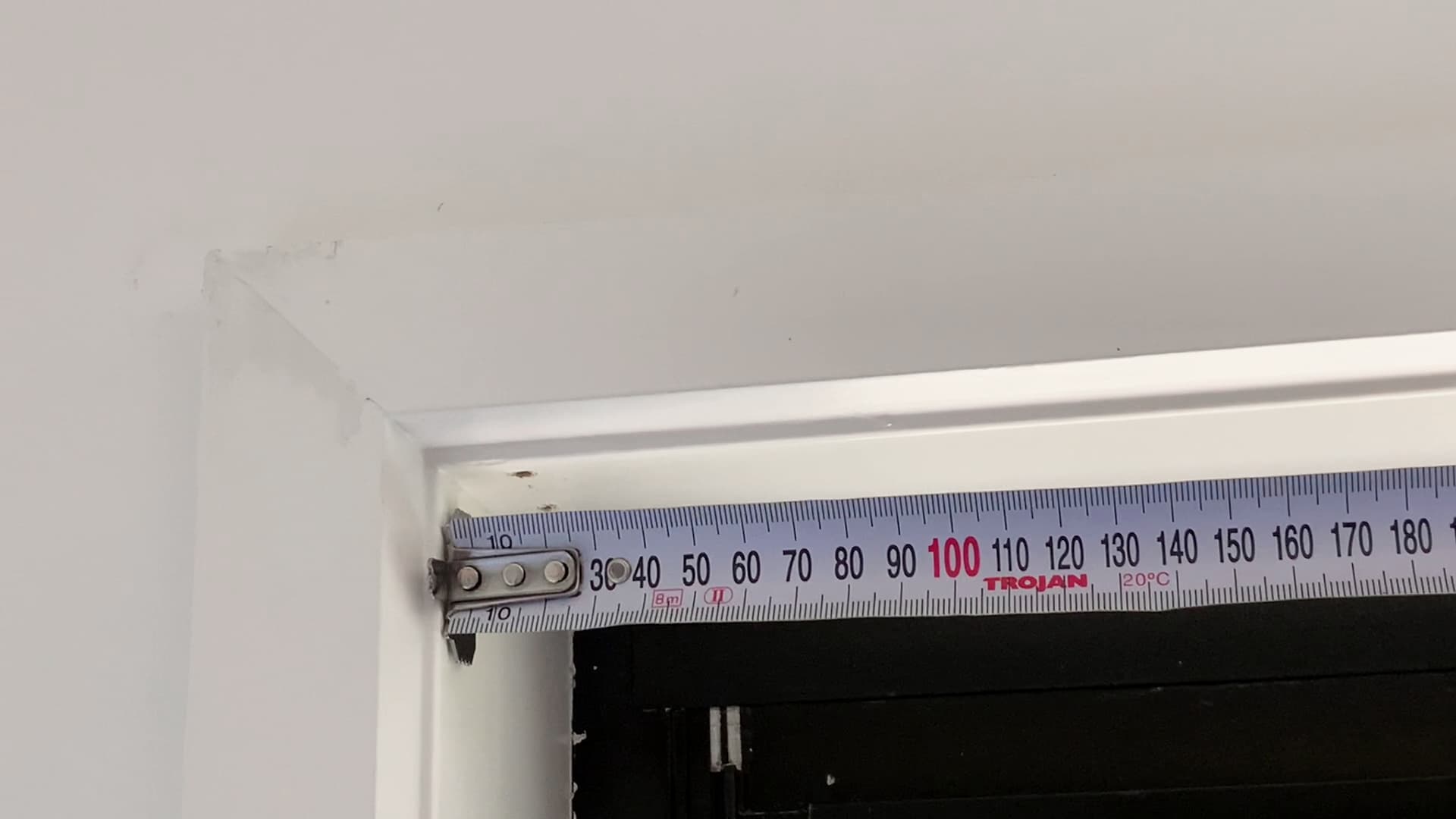

2. Begin measuring the width at the top of the reveal. Place the end of your tape measure inside the reveal.

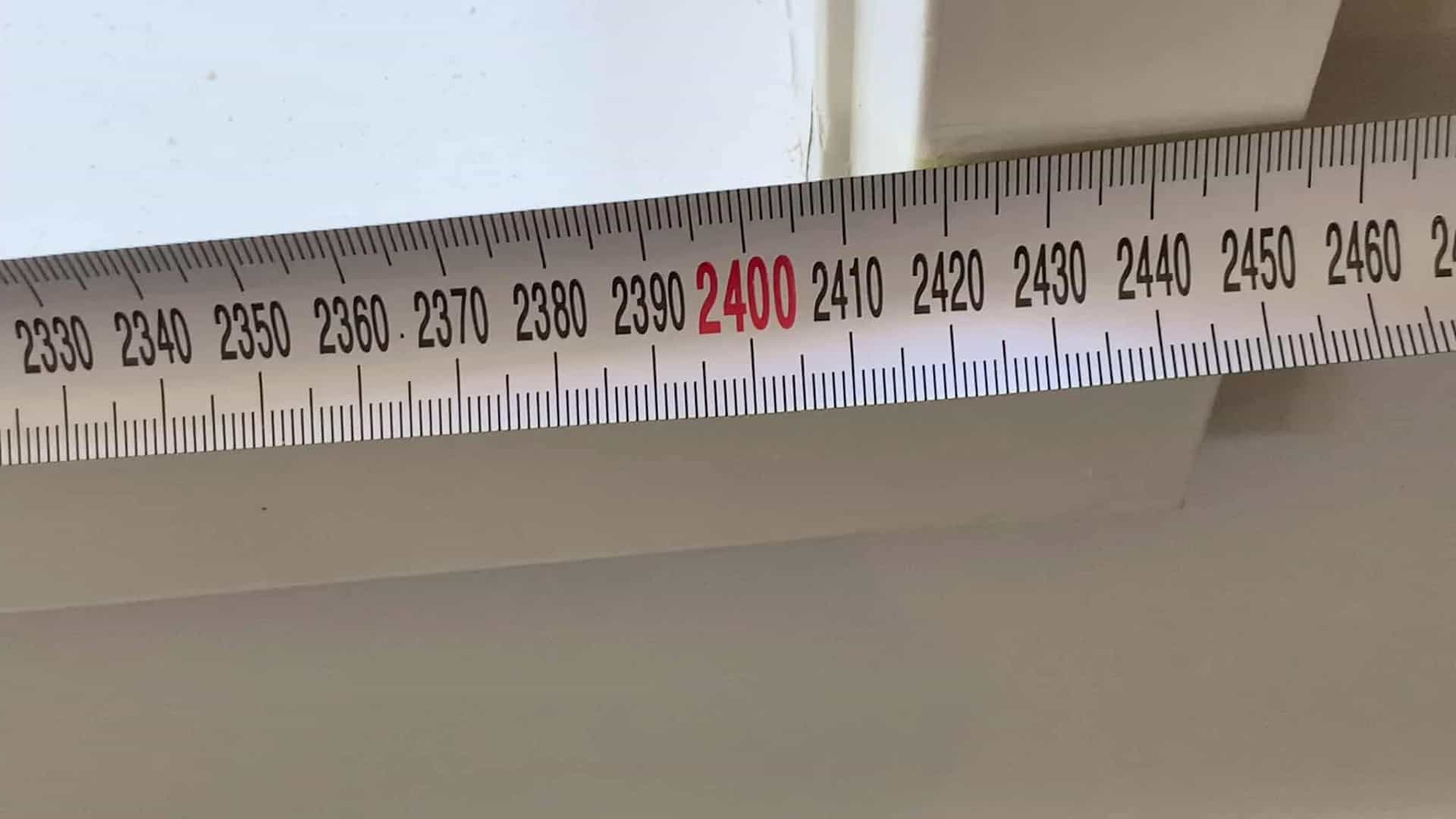

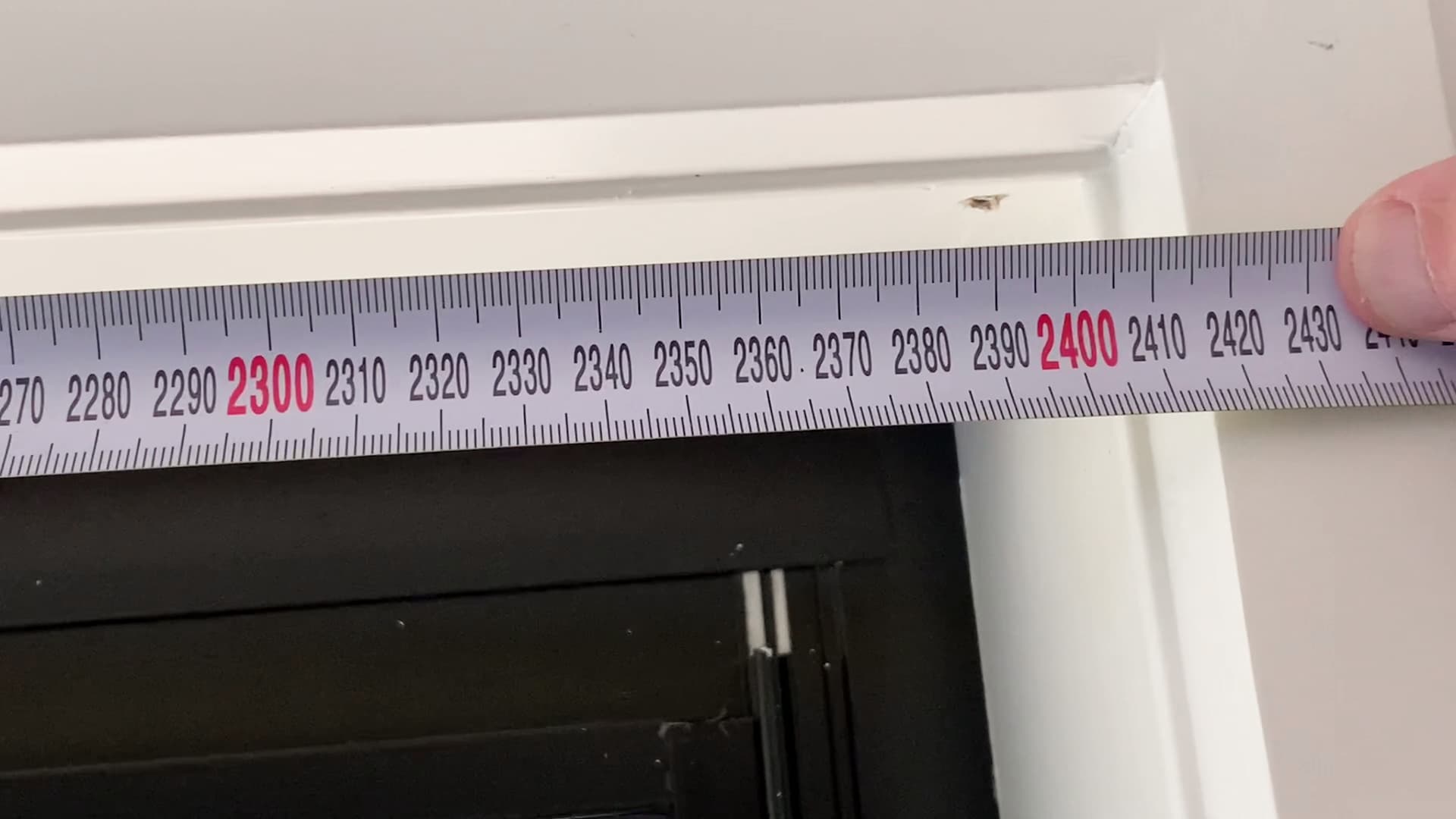

3. Measure to inside reveal on the other side. Our example measurement is 2408mm. Double-check this measurement.
2. Begin measuring the width at the top of the reveal. Place the end of your tape measure inside the reveal.
3. Measure to inside reveal on the other side. Our example measurement is 2408mm. Double-check this measurement.
Note
The top reveal is the most important measurement to get correct. Measurements that are out by as little as 2 or 3mm could prevent the Blind from fitting correctly.
The top reveal is the most important measurement to get correct. Measurements that are out by as little as 2 or 3mm could prevent the Blind from fitting correctly.
Repeat Steps 2 and 3
To accurately measure the window up, you need to take a total of three measurements for both the width and the height.
4. Repeat Steps 2 and 3 for halfway down the window and the bottom of the window.
4. Repeat Steps 2 and 3 for halfway down the window and the bottom of the window.
Note
If your 3 measurements vary use the smallest one to order your blind.
If your 3 measurements vary use the smallest one to order your blind.
Middle
Bottom
Measure the Height
You also need three measurements for the height.

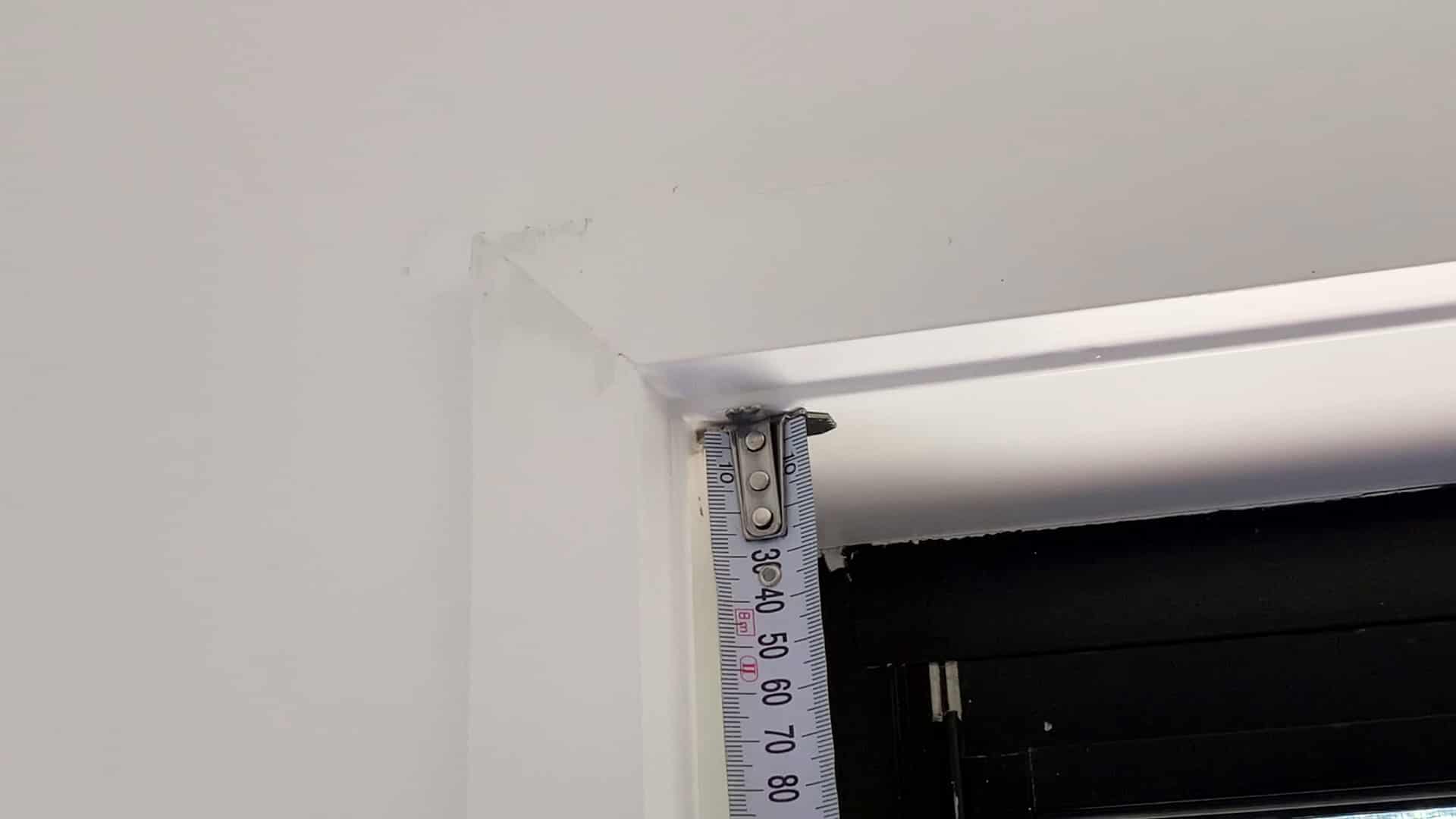

5. Starting from the left hand side place your tape measure on the top of the architrave.

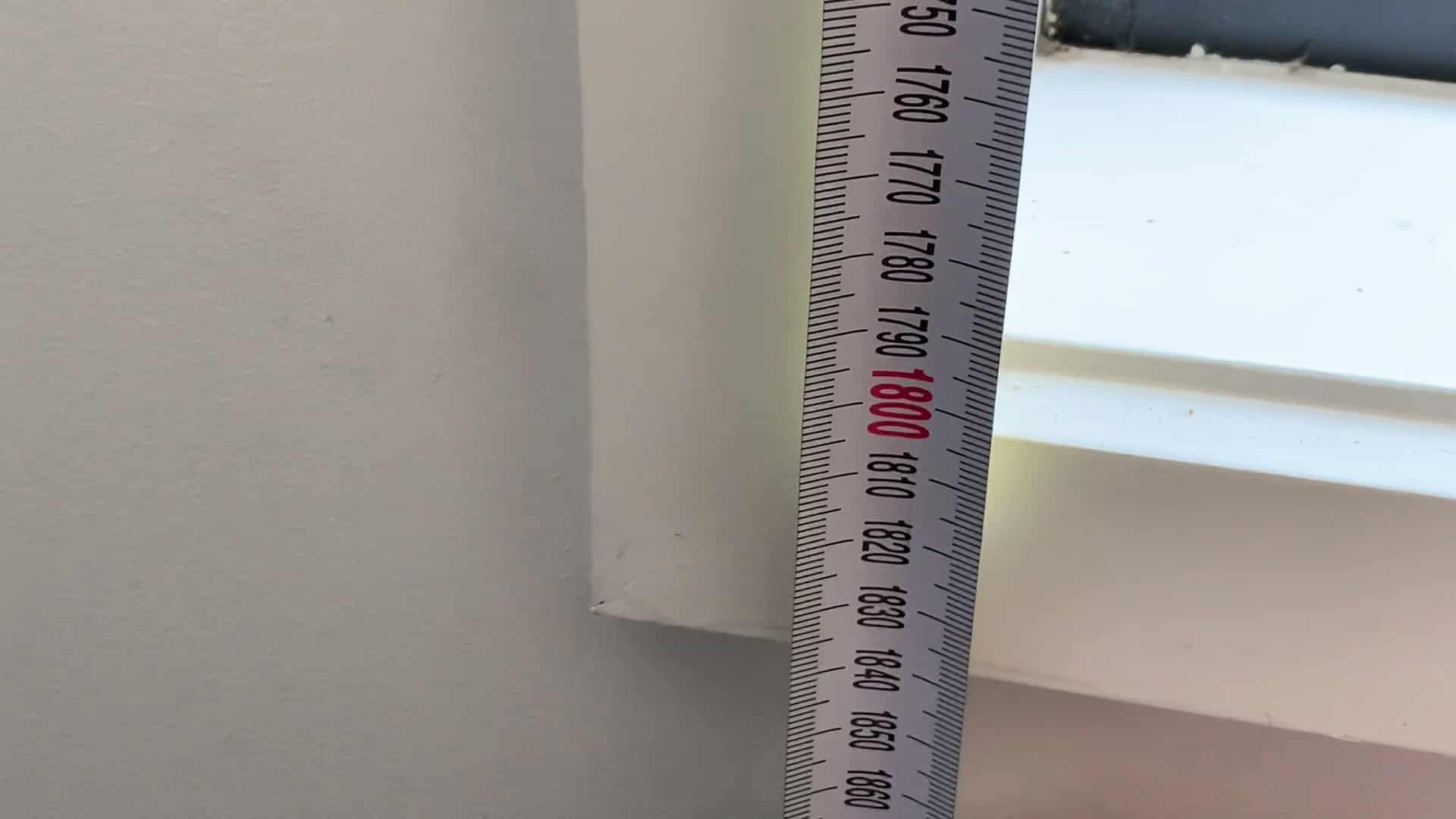

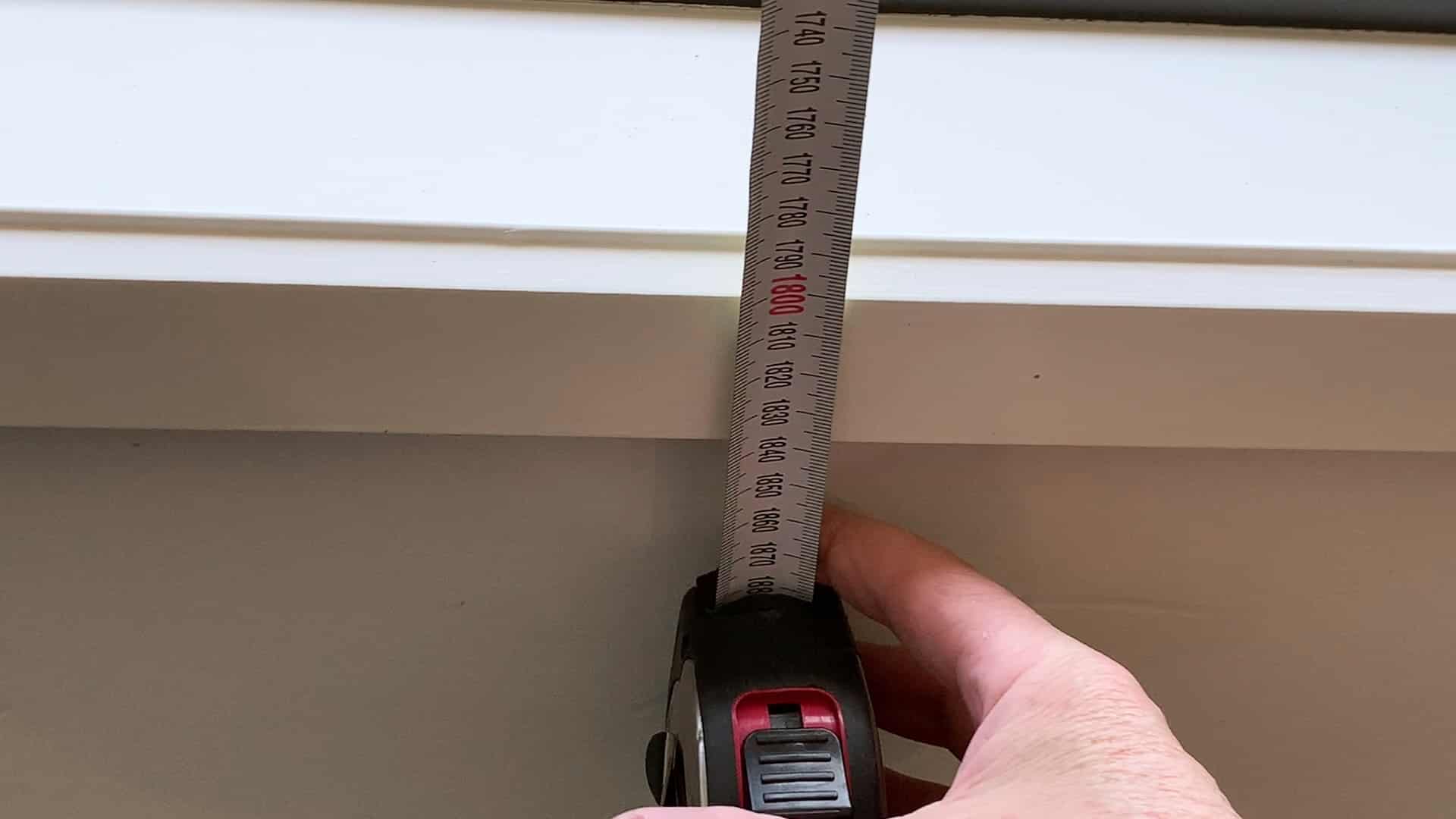

6. Measure to the bottom of the architrave. Our example measures 1800mm.
5. Starting from the left hand side place your tape measure on the top of the architrave.
6. Measure to the bottom of the architrave. Our example measures 1800mm.
Repeat Steps 5 and 6

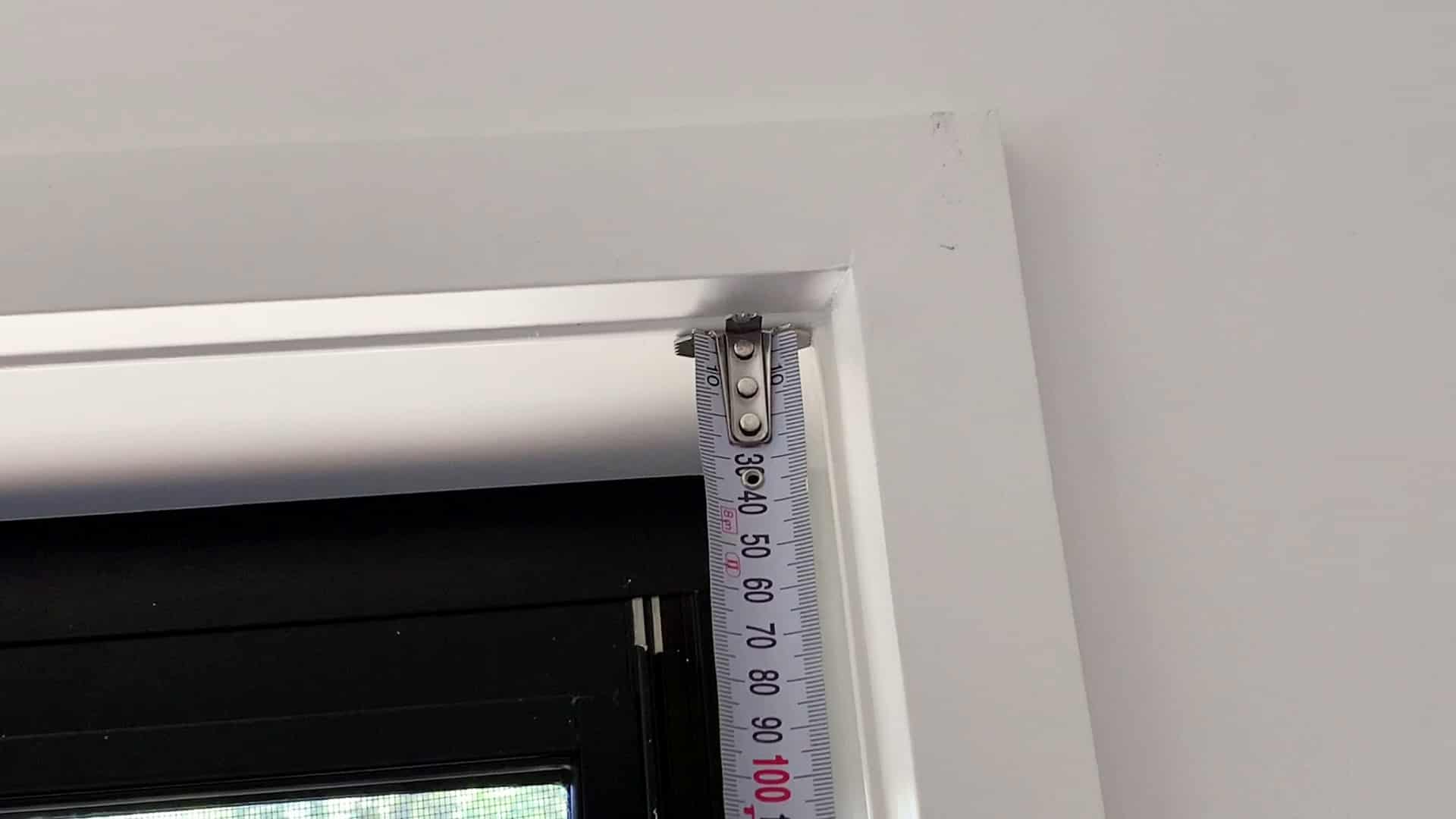

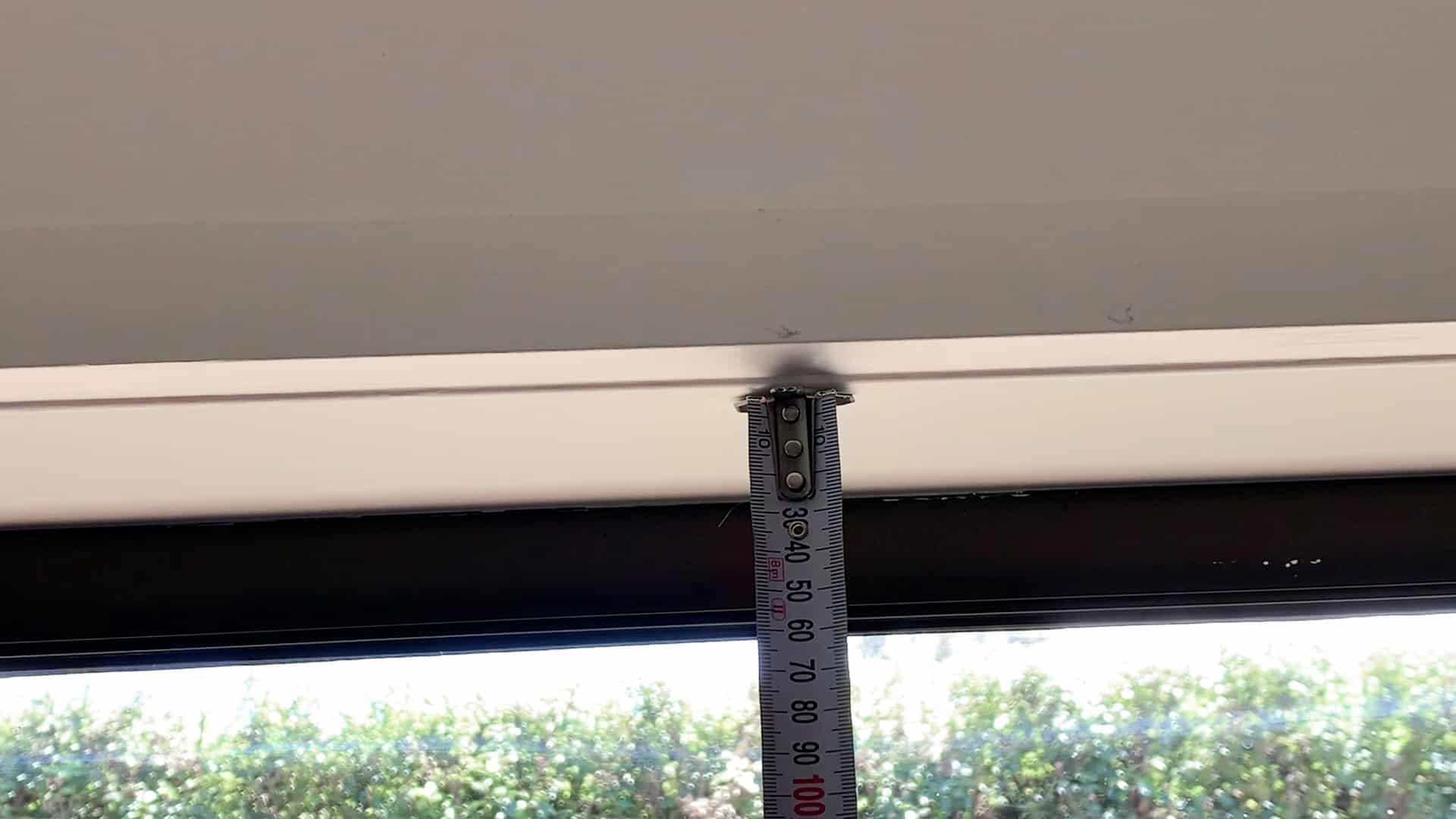

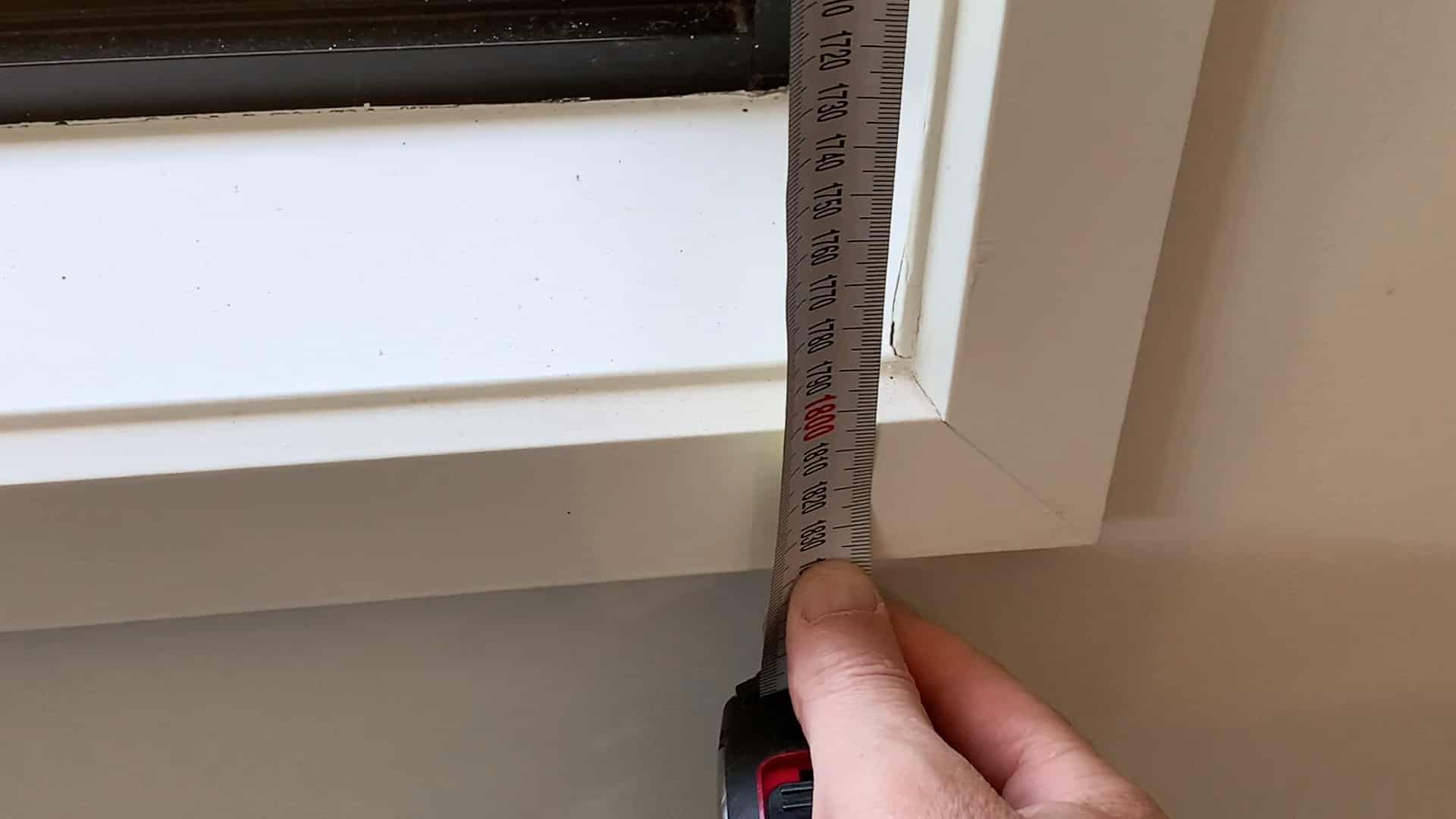

7. Repeat steps 5 and 6 for the middle and right hand side of the window.
Middle
Right
And You're Done!
Congratulations you have successfully measured for a reveal fit Blind!
