Easy Spring Air Installation
By Betta Blinds and Awnings - 5th April 2024

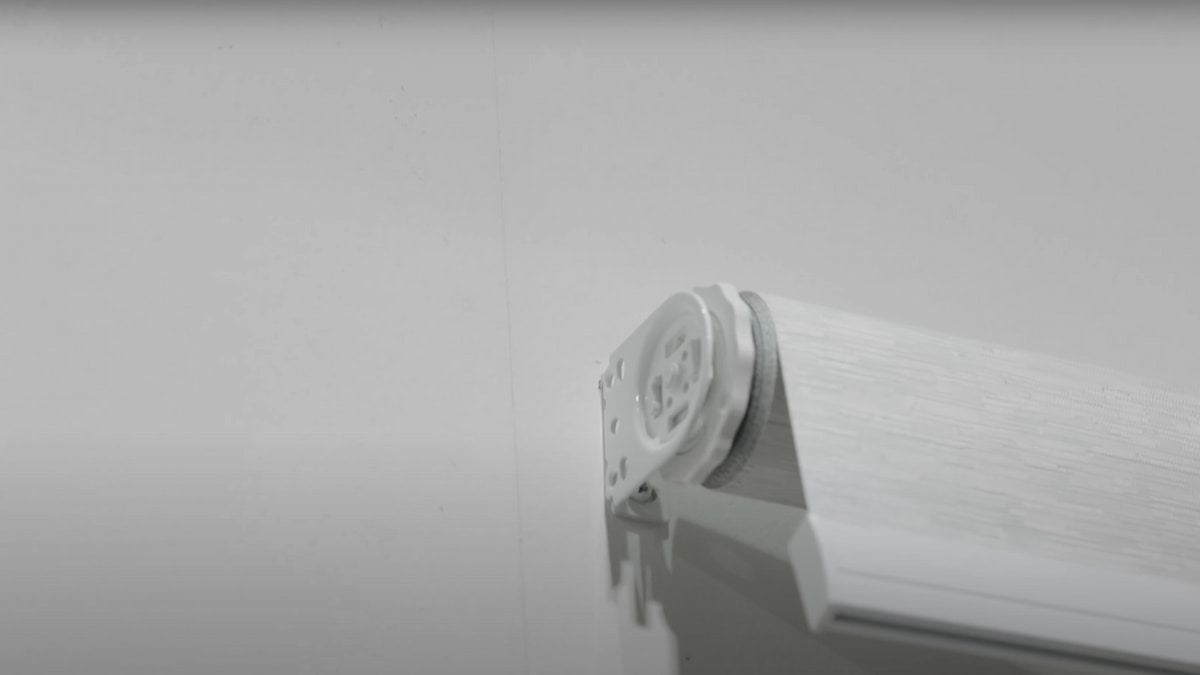

Install Idle Side First
1. Install the spring-loaded pin end (also called idler side) of the Roller Blind into the brackets first.

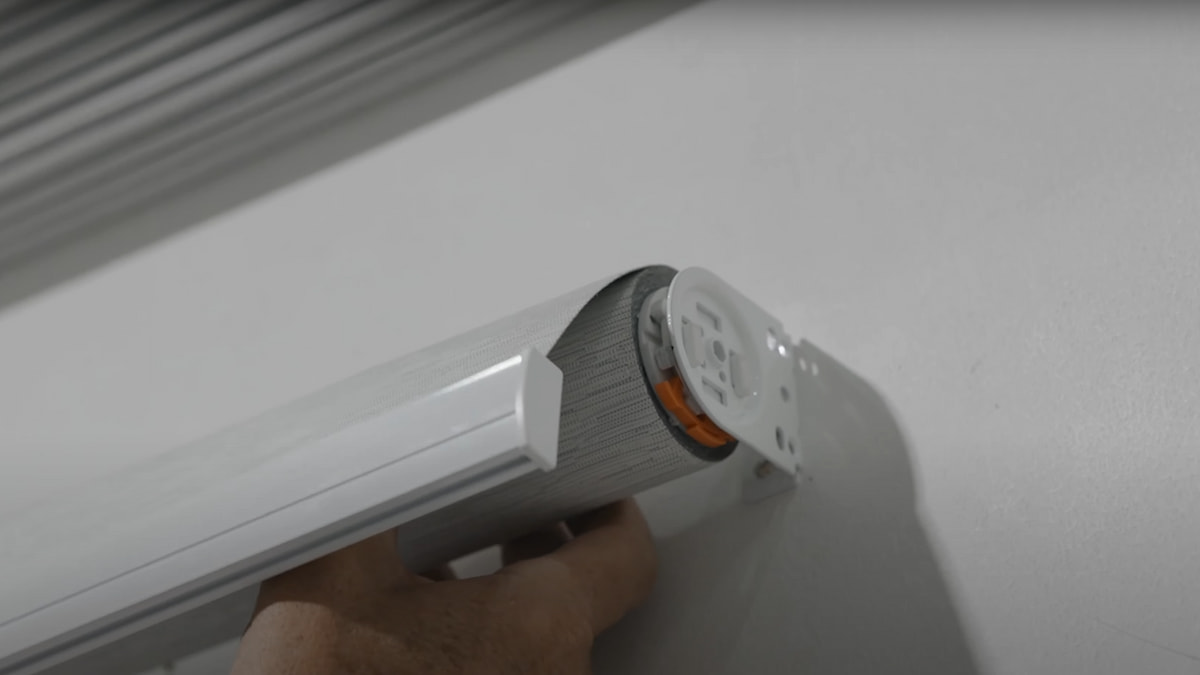

Install Control Side
2. Then install the spring end (also called control side) of the Roller Blind.

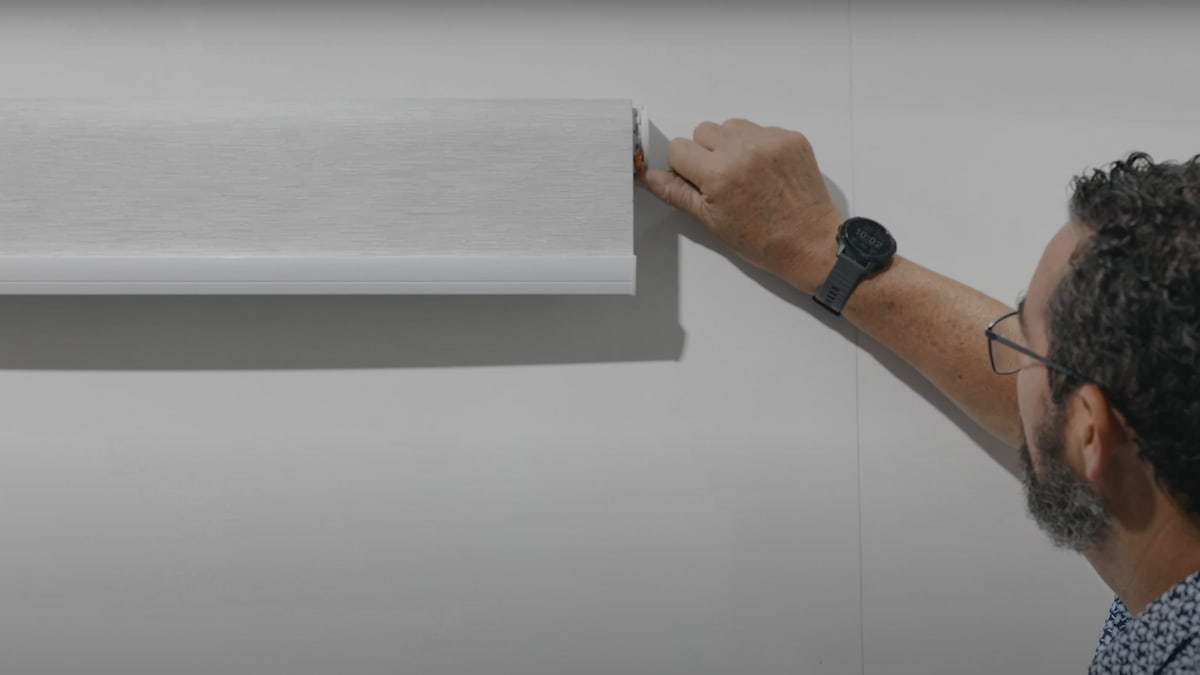

Remove Tension Lock
3. Remove the tension lock to allow the Blind to operate.

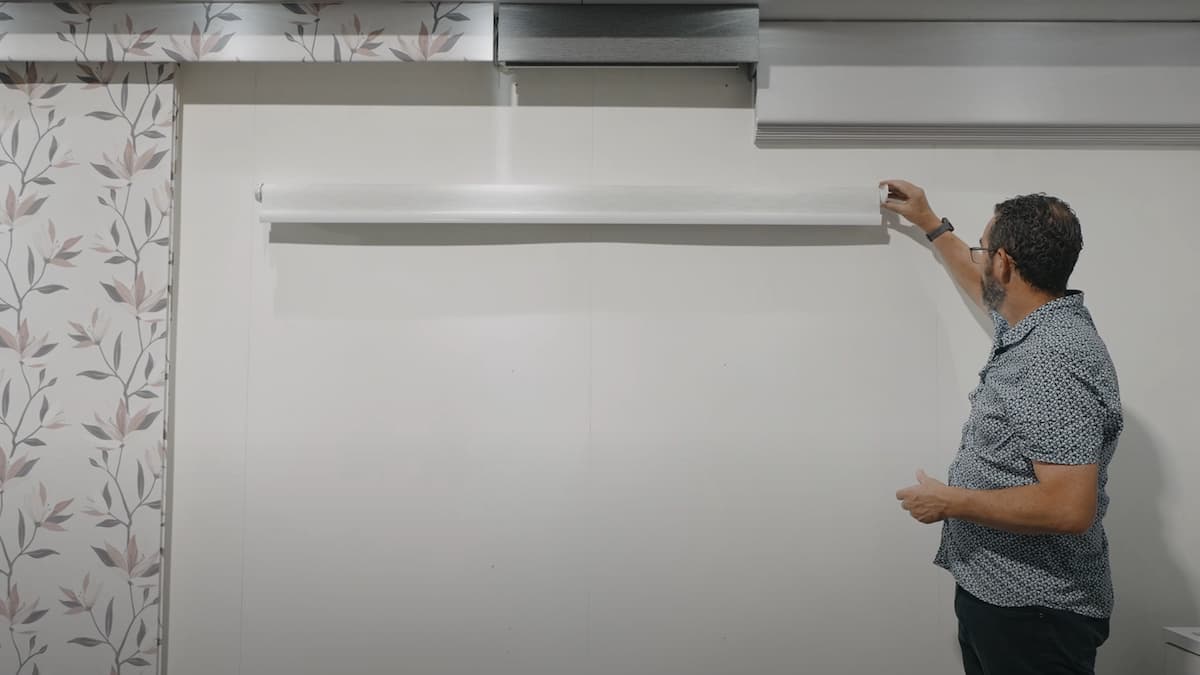

Add Bracket End Caps
4. Add the bracket end caps to finish your installation.

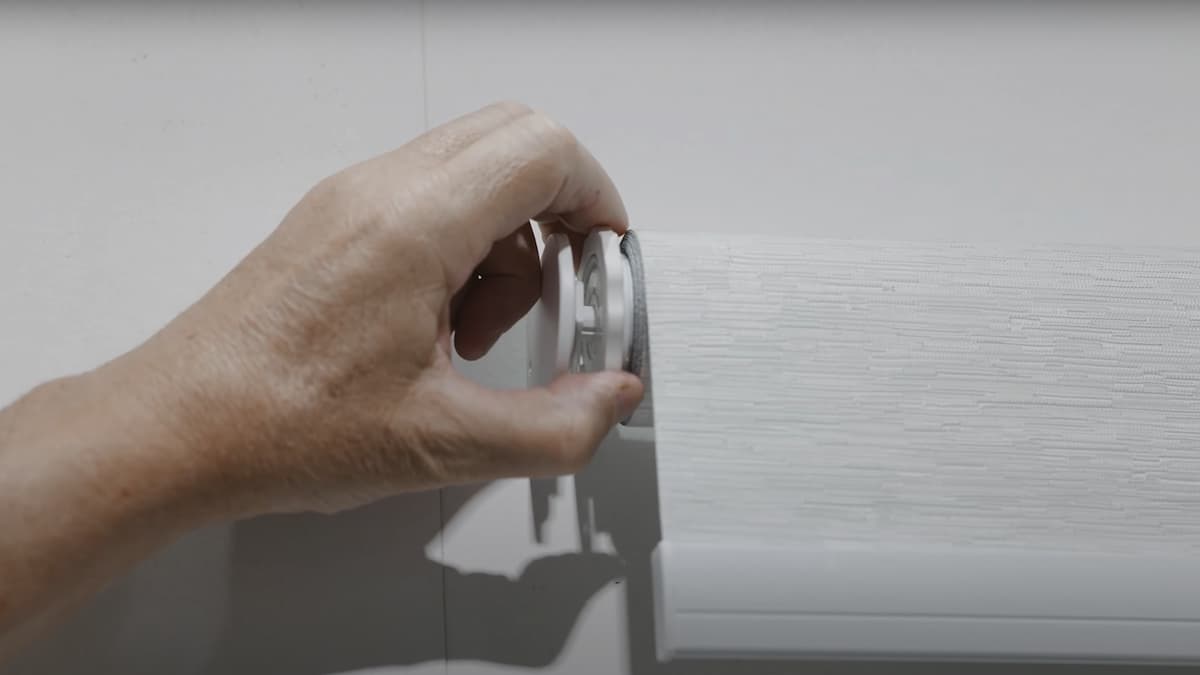

Change Top Limit
Once your Blind is installed you may need to change your top limit. To change your top limit simply rotate the gear on the idle end of your Roller Blind to your desired positio

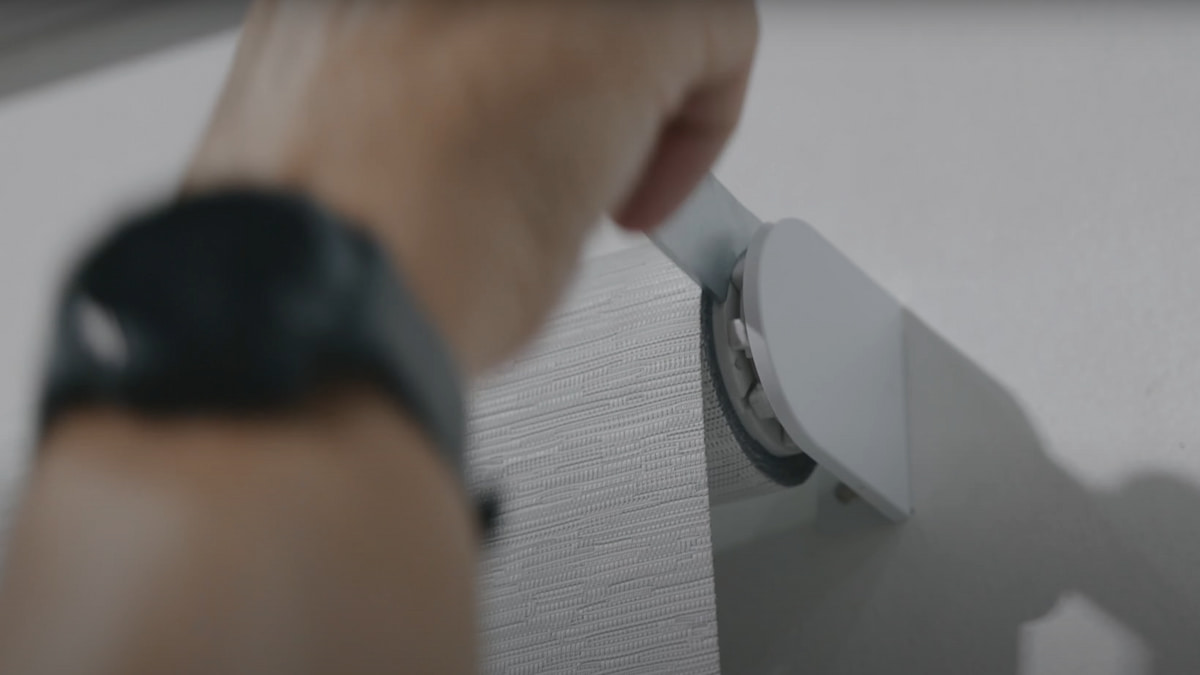

Change Blind Tension
To adjust the tension of your blind place the tension tool into the gears on the control side of your blind (where you removed the tension lock).
And You're Done!
Congratulations you have completed the setup of your Easy Spring Air!
